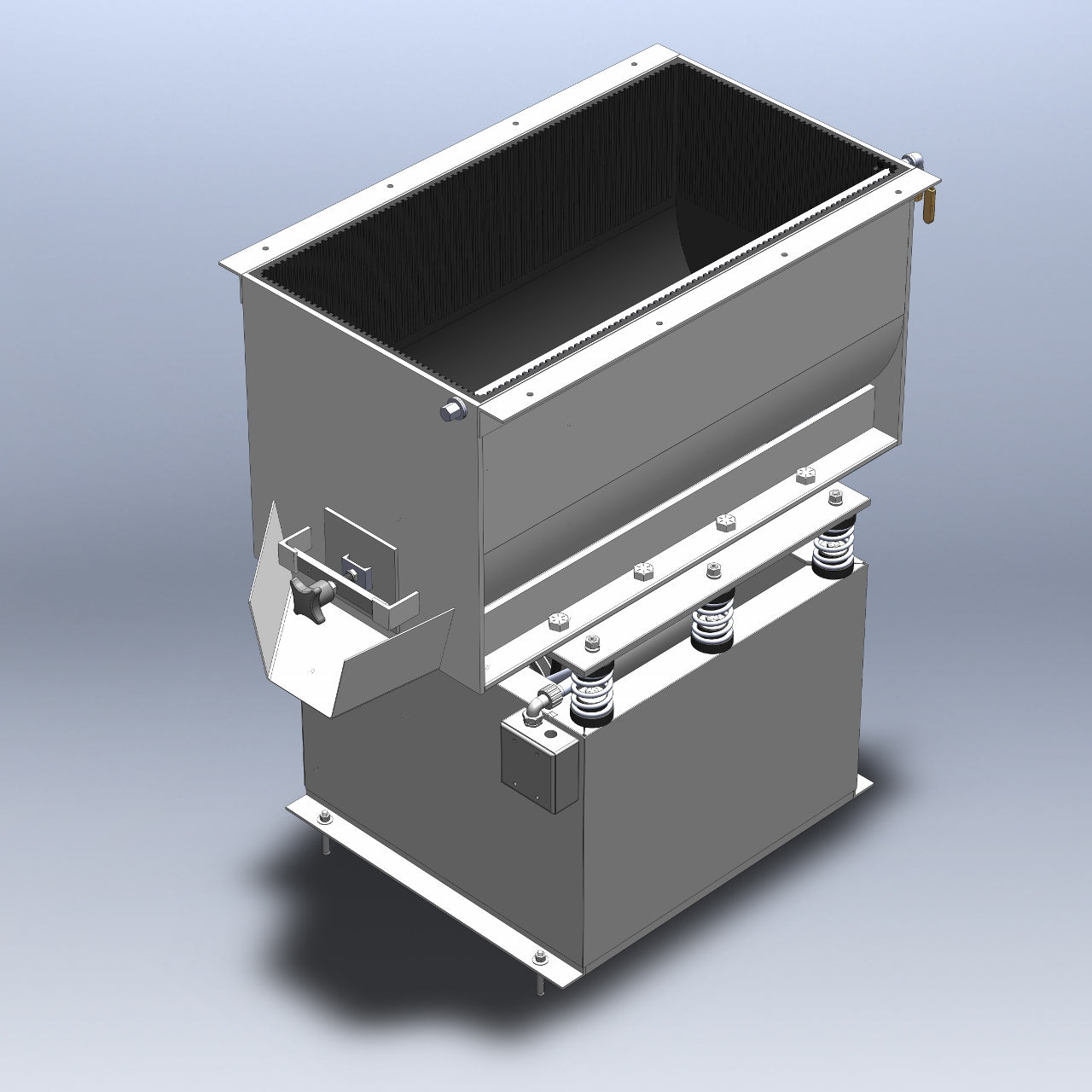

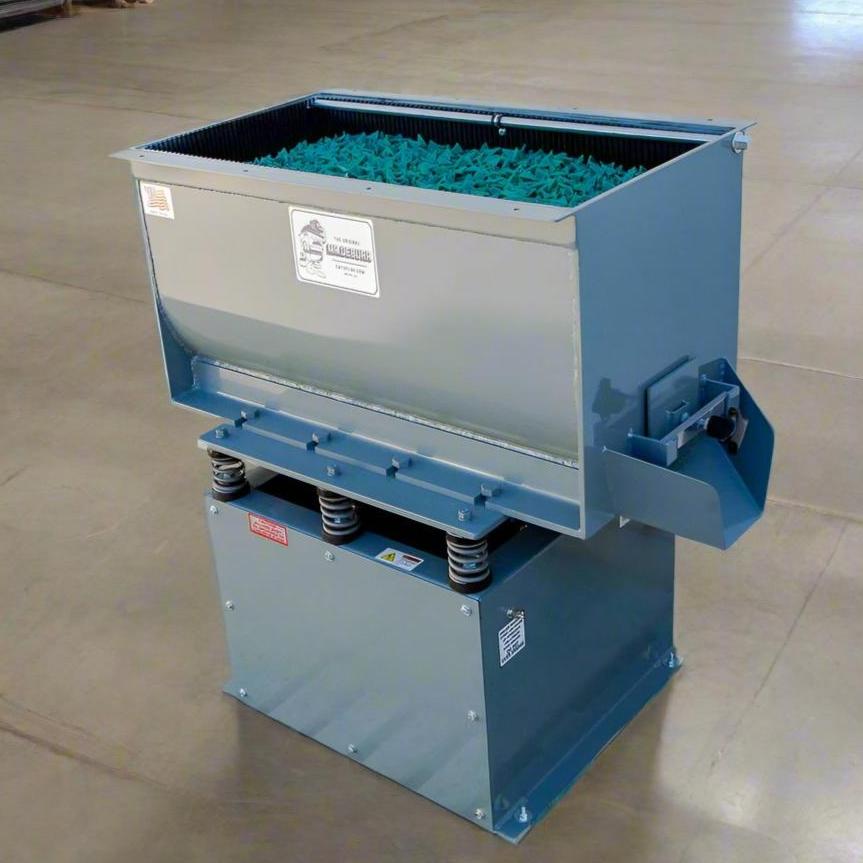

Automate your costly and labor intensive part deburring, finishing, and cleaning with the Mr. Deburr line of vibratory tank finishing machines by C&M Topline. Get more done in less time.
Features:
Optional Media and Compound Starter Kits Available with Machine Purchase Only :
Important Shipping Information:
Important Shipping Information:
Product Specifications
Fluid System |
V102 Included |
Sound Reduction |

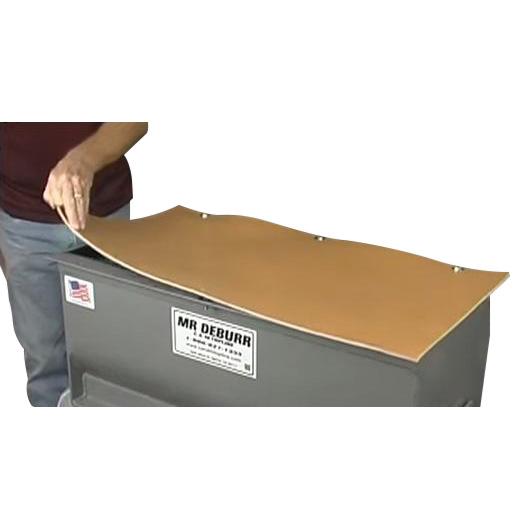

Lid Included |
Max Length (in.) |
46 |
Max Width (in.) |
29 |
Max Height (in) |
44 |
Footprint (in.) |
28 X 25 |
Anchor Type |
Anchor Bolts, 3/8, included (must be mounted to concrete floor) |
Total Volume (cu. ft.) |
6.5 |
Inside Tank Width (in.) |
18 |
Inside Tank Length (in.) |
35 |
Inside Tank Depth (in.) |
18.75 |
Max Part Length (in) |
34 |

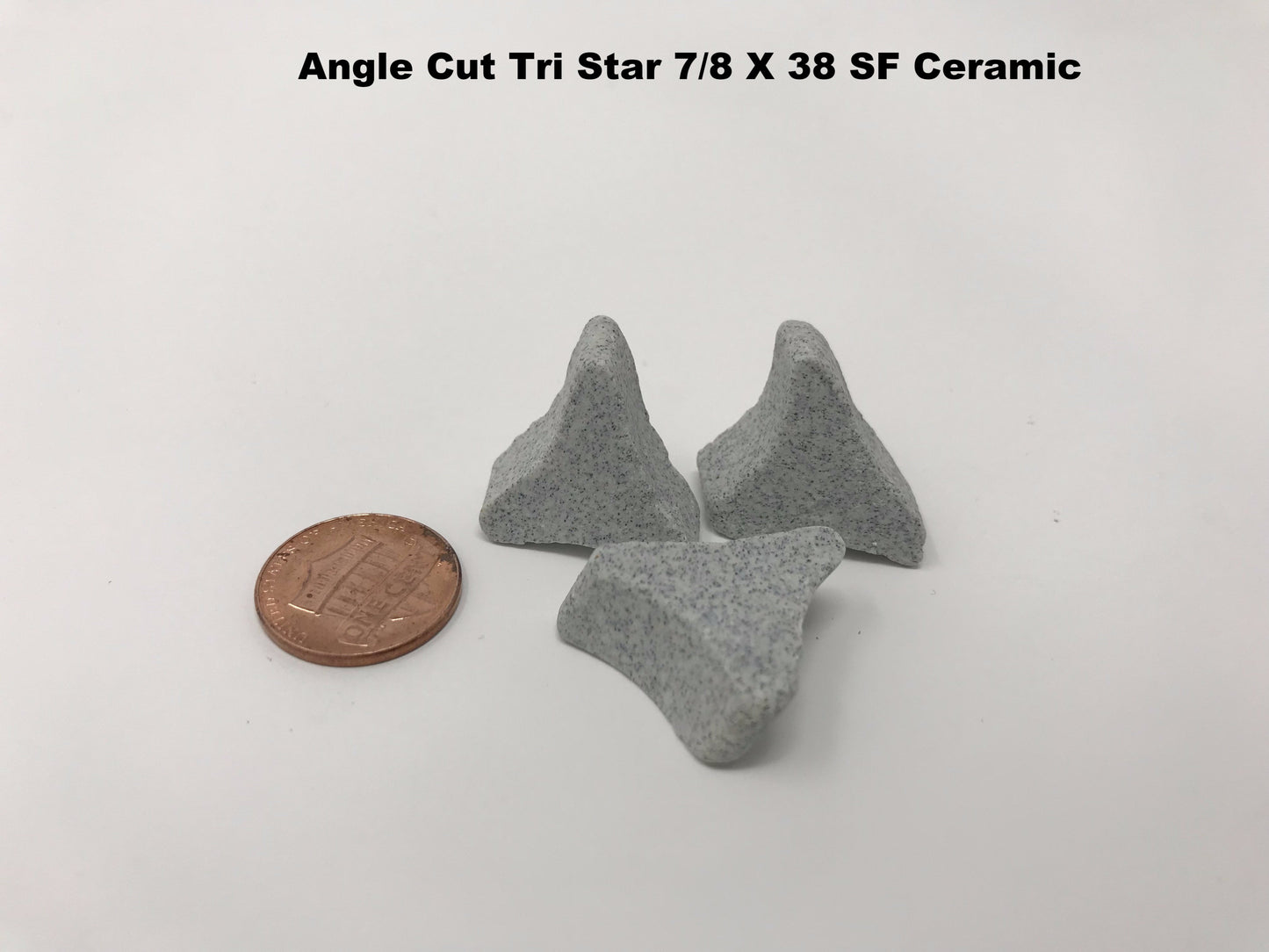

Media Load (Plastic/Ceramic) |
300/400 |
Tank Liner Specifications |
1/2 to 5/8 inch, 80 durometer uniroyal polyurethane |
Approx. Part Load (lbs) |
300 |
Shipping Weight (lbs) |
740 |
Approx. Noise Level (dB) | 80 |
Motor Horse Power, Standard |
3HP, 3 Phase |
Voltage (US/International) |
230V or 440V, 60Hz / 220V, 50Hz (installation of manual disconnect or magnetic starter required, not included with base purchase) |
Operating Manual | Download Here |
Engineering Schematic | Download Here |
