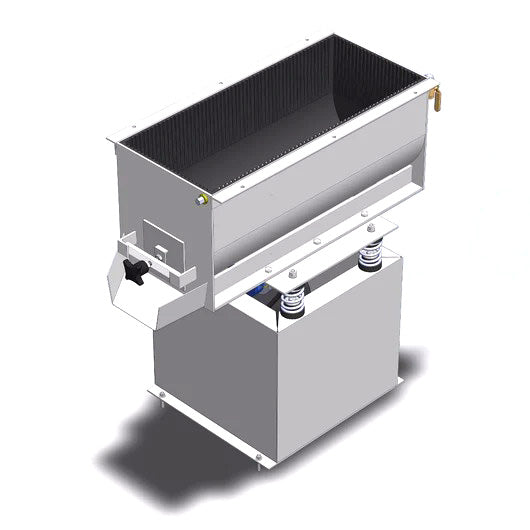

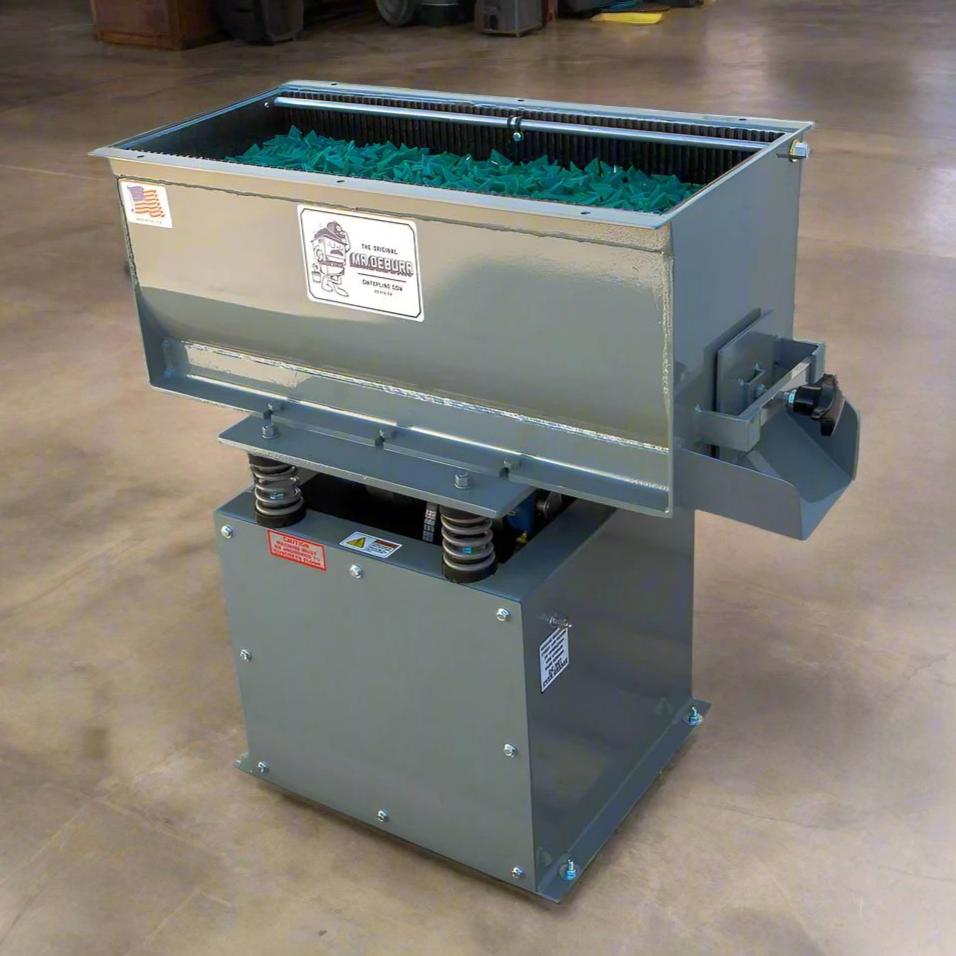

Mr. Deburr DB300 (3 Cubic Foot)
Mr. Deburr DB300 (3 Cubic Foot)
Add Ons:

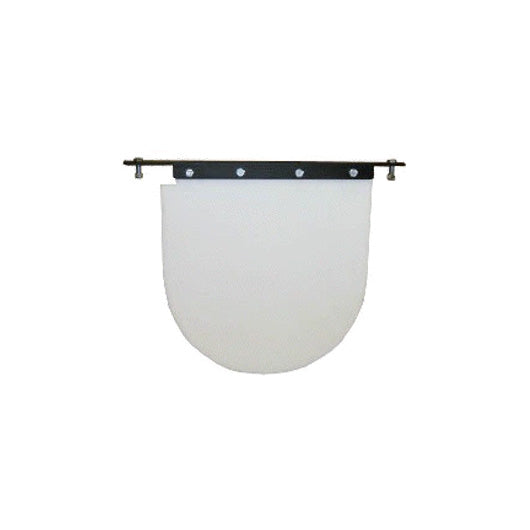

Tank Divider for Mr. Deburr DB300/QDB3 (3 Cubic Foot) Machines
V-104 Timer
Plastic Media Kit for Mr. Deburr 300DB (only avail. with machine purchase)
Ceramic Media Kit for Mr. Deburr 300DB (only avail. with machine purchase)
Couldn't load pickup availability
CURRENT LEAD TIME: 2-3 WEEKS DUE TO ORDER SURGE
Automate your costly and labor intensive part deburring, finishing, and cleaning with the Mr. Deburr line of vibratory tank finishing machines by C&M Topline. Get more done in less time.
Features:
- Constructed of heavy gage steel for long life
- Tanks lined with high quality Uniroyal polyurethane that is oven cured (Our tank liners have been known to last 20+ years)
- 5-inch round discharge door that is held in place with a quick release clamp for easy parts separation or media changes

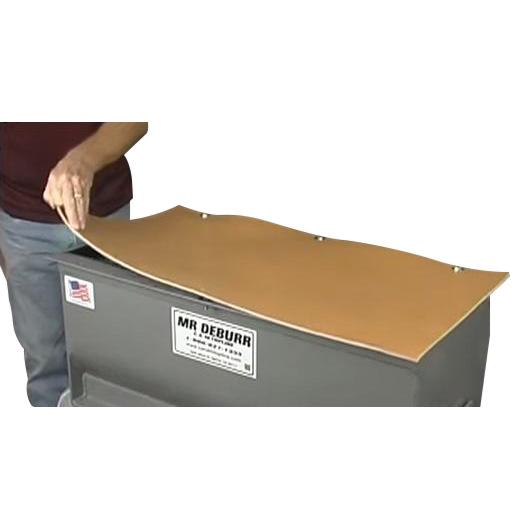

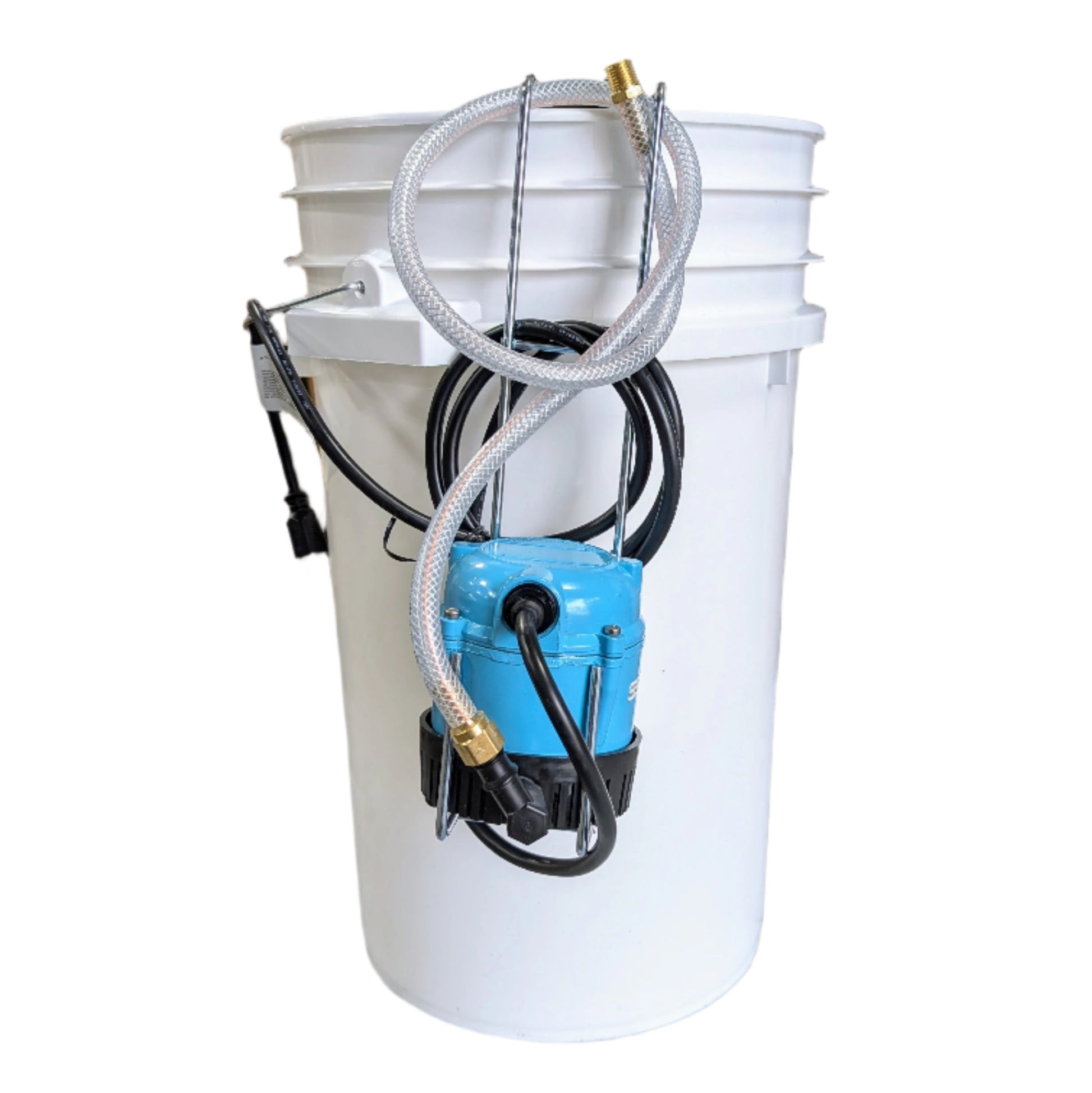

- Included with purchase is a complete fluid system, sound reduction lid and anchor bolts
- Available in all foreign voltages and hertz. We install motors that are designed to run these voltages without the use of converters
- Simple reliable design will give years of trouble free service
- All parts are line replaceable and available from C&M Topline
- Made in the USA
- One (1) year warranty included
Optional Media and Compound Starter Kits Available with Machine Purchase Only :

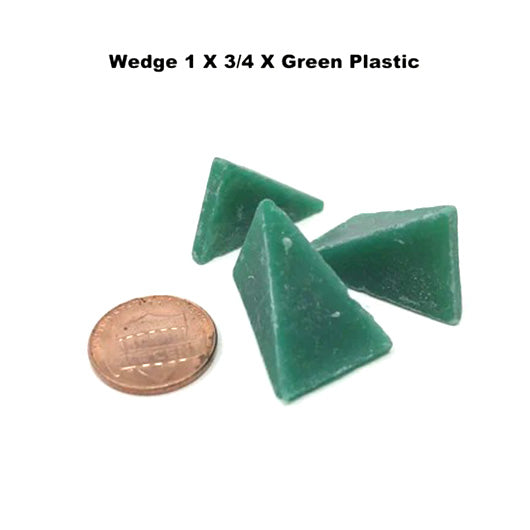

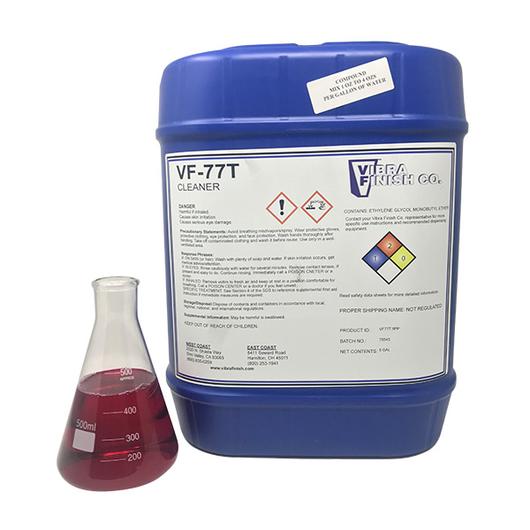

- 100 pounds of Wedge 1 X 3/4 X Plastic or Similar Equivalent (due to stock availability) and 5 gallons of VF77T compound for processing aluminum and other softer metals

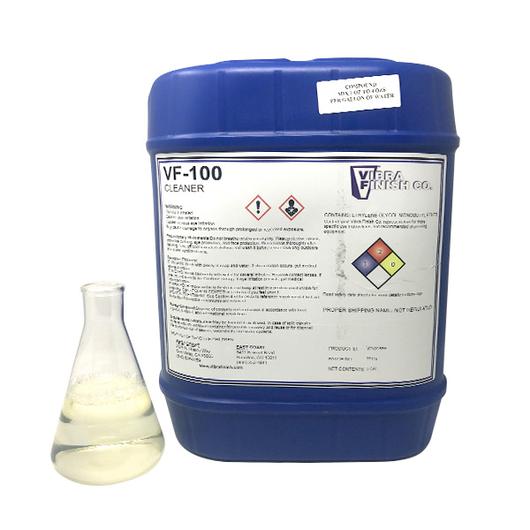

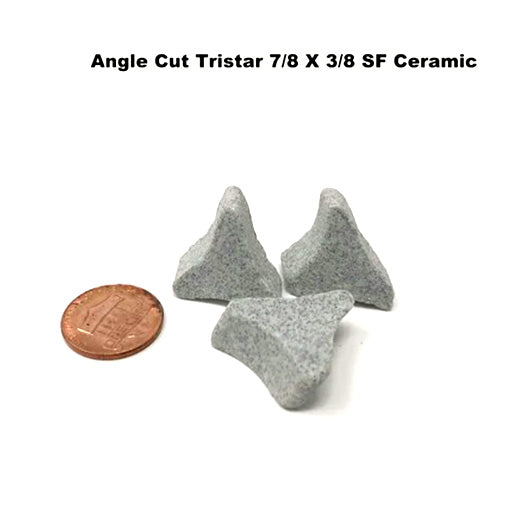

- 150 pounds of Angle Cut Tristar 7/8 X 3/8 SF Ceramic or Similar Equivalent (due to stock availability)and 5 gallons of VF100 compound for processing steel and other hard metals
Important Shipping Information:
- 430 pound shipping weight (machine only)
- Ships via LTL (Less than Truck Load) truck freight on a pallet
- A commercial delivery address with forklift or loading dock access is preferred
- We reserve the right to adjust your shipping charge depending on the delivery address and availability of a forklift or loading dock as additional charges may apply
- If you select shipping collect on your account be aware that shipping rates vary widely by carrier and the rate schedule you have negotiated with your carrier. Small package UPS and Fedex accounts are not usually Freight LTL accounts
- If you would prefer to pick up your order in Goleta California at our location please email info@cmtopline.com to process your order
Product Specifications:
|
Fluid System |
V102 Included |
|
Sound Reduction |
Lid Included |
|
Max Length (in.) |
37 |
|
Max Width (in.) |
20 |
|
Max Height (in) |
38 |
|
Footprint (in.) |
22 X 19.5 |
|
Anchor Type |
Anchor Bolts, 3/8, included (must be mounted to concrete floor) |
|
Total Volume (cu. ft.) |
3 |
|
Inside Tank Width (in.) |
13.5 |
|
Inside Tank Length (in.) |
31 |
|
Inside Tank Depth (in.) |
13 |
|
Max Part Length (in) |
30 |
|
Media Load (Plastic/Ceramic) (lbs) |
100/150 |
|
Tank Liner Specifications |
1/2 to 5/8 inch, 80 durometer uniroyal polyurethane |
|
Approx. Part Load (lbs) |
100 |
|
Shipping Weight (lbs) |
400 |
| Approx. Noise Level (dB) | 80 |
|
Motor Horse Power, Standard |
0.75HP, 1 Phase |
|
Voltage (US/International) |
110V, 60Hz / 220V, 50Hz, F.L.A. 14.6/7.9 |
| Operating Manual | Download Here |
| Engineering Schematic | Download Here |
- *In the event of an unforeseen order surge, lead time depends on demand
- Always wear personal protective equipment when operating any industrial machinery
- Actual product may differ slightly from photos
