Automate your costly and labor intensive part deburring, finishing, and cleaning with the Mr. Deburr line of vibratory tank finishing machines by C&M Topline. Get more done in less time.

Features:

Constructed of heavy gage steel for long life
Tanks lined with high quality Uniroyal polyurethane that is oven cured (Our tank liners have been known to last 20+ years)
5-inch round discharge door that is held in place with a quick release clamp for easy parts separation or media changes
Included with purchase is a complete fluid system, sound reduction lid and anchor bolts
Available in all foreign voltages and hertz. We install motors that are designed to run these voltages without the use of converters
Simple reliable design will give years of trouble free service
All parts are line replaceable and available from C&M Topline
Made in the USA
One (1) year warranty included
Unlike our competitors we keep these machines in stock and ready to ship in 1 to 2 business days*

Optional Media and Compound Starter Kits Available with Machine Purchase Only :

$252.00: 100 pounds of Wedge 1 X 3/4 X Plastic and 5 gallons of VF77T compound for processing aluminum and other softer metals
$252.00: 150 pounds of Angle Cut Tristar 7/8 X 3/8 SF Ceramic and 5 gallons of VF100 compound for processing steel and other hard metals

Important Shipping Information:

430 pound shipping weight (machine only)
Ships via LTL (Less than Truck Load) truck freight on a pallet
A commercial delivery address with forklift or loading dock access is preferred
We reserve the right to adjust your shipping charge depending on the delivery address and availability of a forklift or loading dock as additional charges may apply
If you select shipping collect on your account be aware that shipping rates vary widely by carrier and the rate schedule you have negotiated with your carrier. Small package UPS and Fedex accounts are not usually Freight LTL accounts
If you would prefer to pick up your order in Goleta California at our location please email info@cmtopline.com to process your order

Product Specifications:

Fluid System	V102 Included
Sound Reduction	Lid Included
Max Length (in.)	37
Max Width (in.)	20
Max Height (in)	38
Footprint (in.)	22 X 19.5
Anchor Type	Anchor Bolts, 3/8, included (must be mounted to concrete floor)
Total Volume (cu. ft.)	3
Inside Tank Width (in.)	13.5
Inside Tank Length (in.)	31
Inside Tank Depth (in.)	13
Max Part Length (in)	30
Media Load (Plastic/Ceramic)	100/150
Tank Liner Specifications	1/2 to 5/8 inch, 80 durometer uniroyal polyurethane
Approx. Part Load (lbs)	100
Shipping Weight (lbs)	400
Approx. Noise Level (dB)	80
Motor Horse Power, Standard	0.75HP, 1 Phase
Voltage (US/International)	110V, 60Hz / 220V, 50Hz
Operating Manual	Download Here
Engineering Schematic	Download Here

*In the event of an unforeseen order surge, lead time depends on demand
Always wear personal protective equipment when operating any industrial machinery
Actual product may differ slightly from photos

Duburring & Finishing Machines

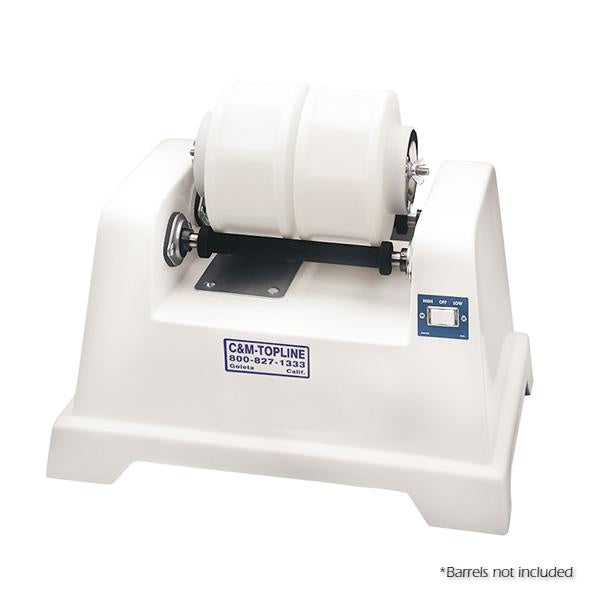

MiniMax 2 Bar, 2 Speed (H/Lo) Rotary Tumbler
