FCV-ULE-2

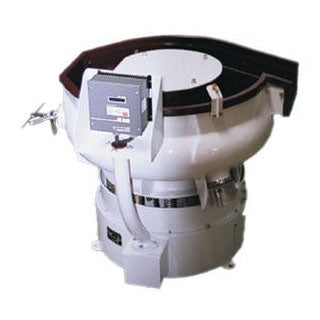

VibraHone™ Vibratory Bowls and High-Energy Mass Finishing Equipment provide high-energy, high-amplitude finishing, polishing, preplating and deburring and can utilize the full spectrum of media.

FCV-ULE-2 Series

• High Frequency/High Amplitude Vibratory Mass Finishing
• (3) Models 3, 5.3 & 10.6 CU. FT. Capacities
• Heavy-Duty Motor
• AC Tech Inverter/Controller
• 230V/460V Dual Voltage with Waterproof ON/OFF Switch
• Rugged Polyurethane Liner
• Variable Speed Control
• Adjustable Amplitude and Lead Angle
• Manual Hand Dam Control
• Convenient Discharge Door
• Curved-Wall Construction
• Low-Profile Design
• Extended Screen Deck
• Easily Changeable Drain Plug

Curved wall design, 1800rpm, variable speed drive, extended screen deck, internal separation. Increases operating efficiency, reduces down time, keeps production lines running, increases overall operational efficiency.

• CUBIC FEET – 10.6
• CHANNEL WIDTH – 12.8
• BOWL OD – 54.3″
• BOWL HEIGHT – 42.5″
• SHIP WT LBS – 2200
• MOTOR HP – 3.0
