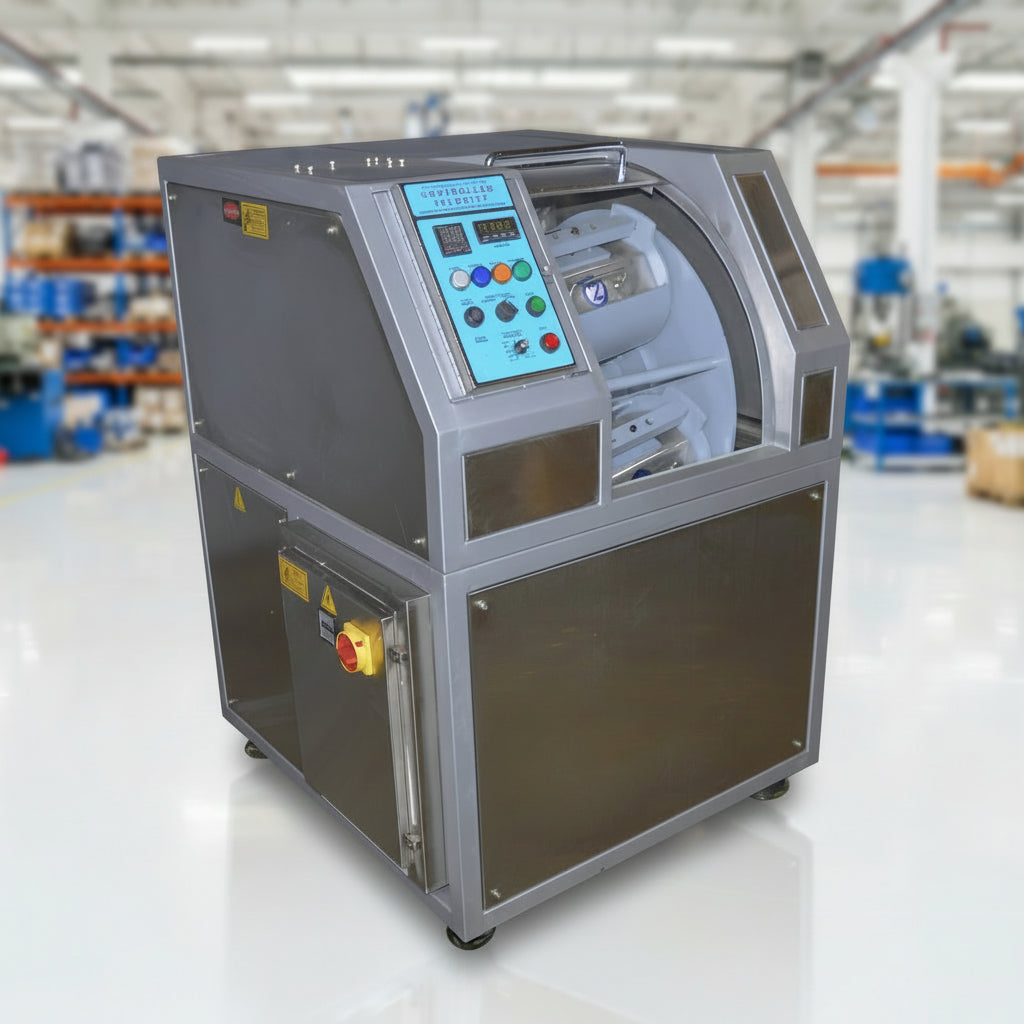

CV8-600 High Energy Centrifugal Barrel Tumbler
CV8-600 High Energy Centrifugal Barrel Tumbler
Couldn't load pickup availability
RICHWOOD CV8-600
High-Energy "Figure Eight" Finishing System
Advanced Precision for Complex Component Geometry
The Richwood CV8-600 represents the next generation in centrifugal barrel technology. Engineered for manufacturers handling intricate parts, the CV8-600 utilizes a specialized "Figure Eight" motion that ensures media reaches every recess, internal diameter, and complex contour—delivering a level of precision that standard straight-barrel machines cannot match.
THE FIGURE EIGHT ADVANTAGE Unlike traditional centrifugal systems, the CV8-600 is designed so that media moves in a continuous figure eight pattern [User-Specified]. This multidirectional flow:
- Reaches Complex Areas: Specifically designed for deburring and polishing parts with deep recesses, blind holes, and intricate geometries [User-Specified].
- Eliminates "Dead Zones": Ensures constant media-to-part contact from all angles, preventing uneven finishes on non-linear surfaces.
- Enhanced Polishing: Provides superior surface refinement, ideal for achieving mirror-like finishes on high-value components.

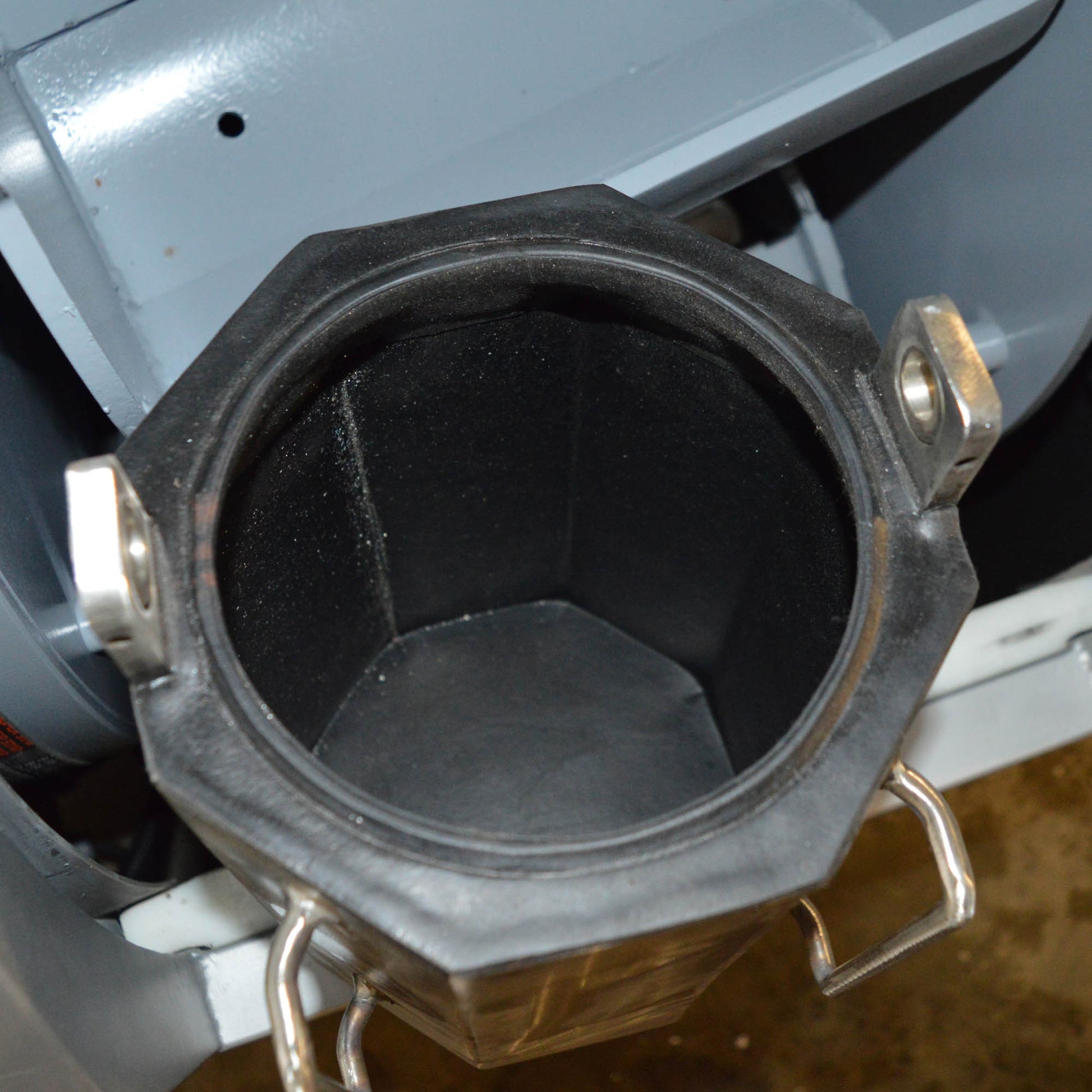

RUGGED CONSTRUCTION & LINING OPTIONS Richwood offers specialized barrel linings tailored to your specific cycle times and material requirements:
- Natural Rubber-Lined: Optimized for high-heat applications and long production runs using heat-resistant Buna rubber.
- Polyurethane-Lined: Features a replaceable liner for simplified long-term maintenance and extended service life [User-Specified].
- Barrel Lids: Exclusive Cam-Lock, tool-less design for rapid cycle changeovers.

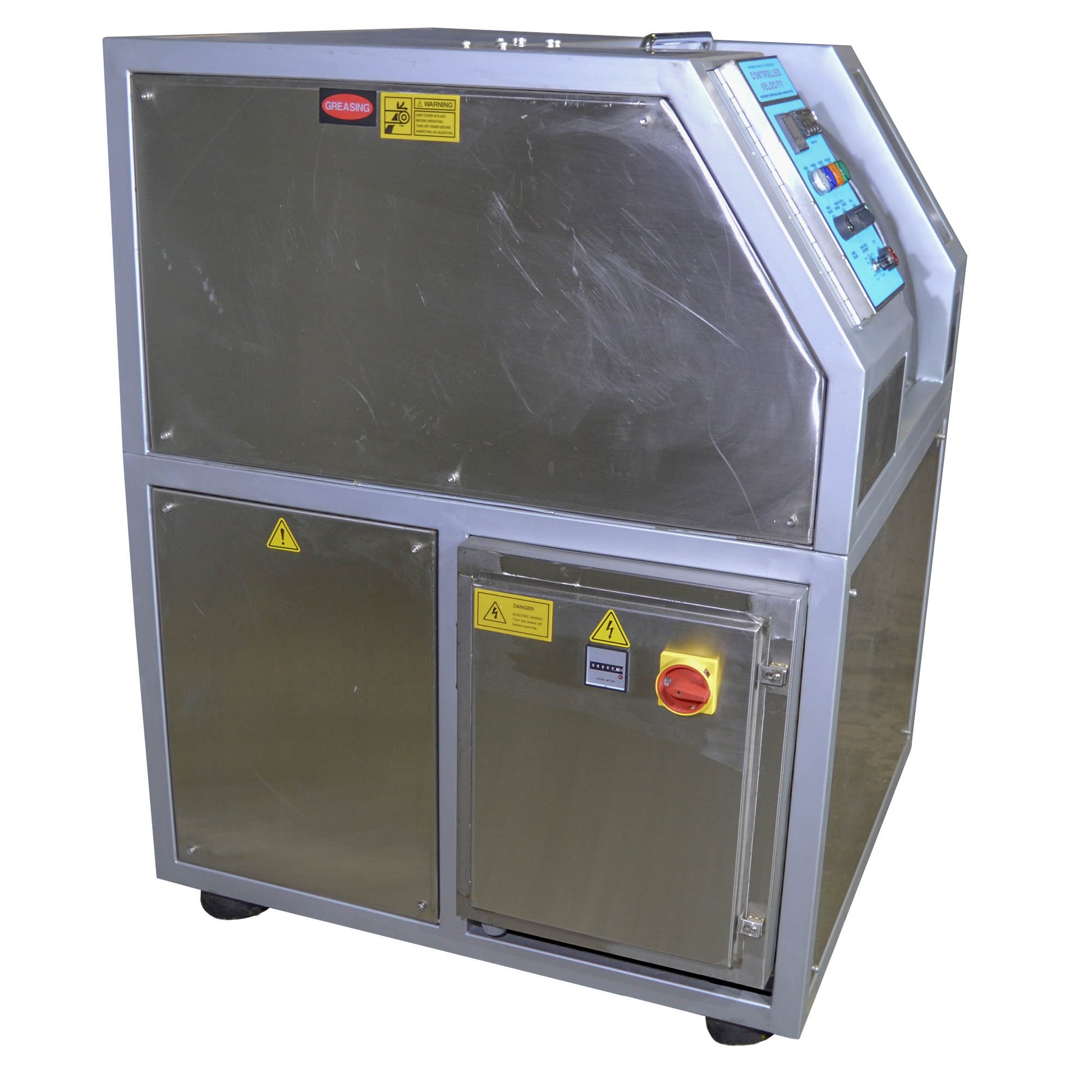

- Chassis: Heavy-duty, all-stainless steel construction for maximum industrial lifespan.
|
Electrical Input |
230V, 3 Phase Industrial Power |
|
Main Motor |
3 Horsepower high-torque industrial motor |
|

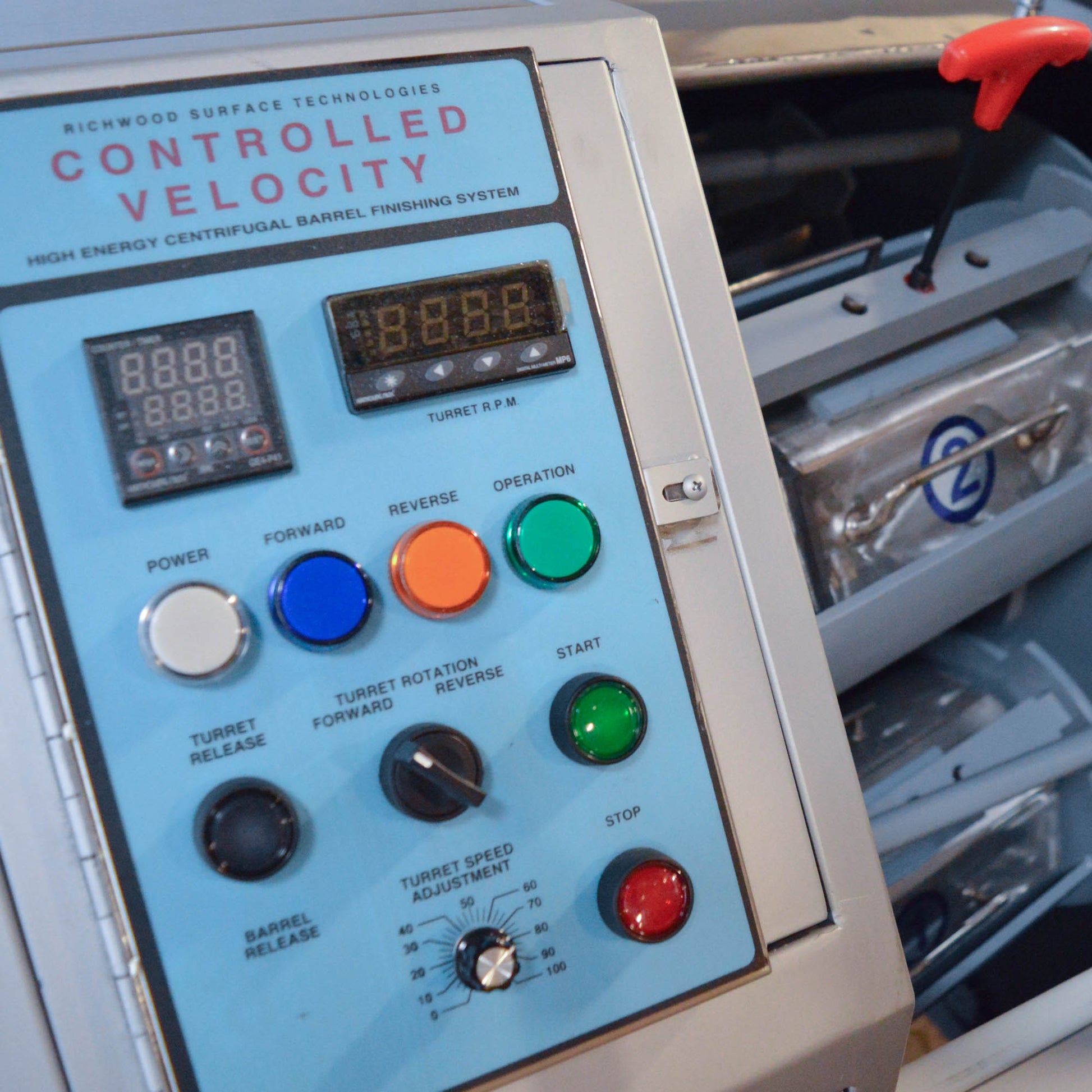

Speed Control |
Computerized, Variable Speed Drive (60 – 180 R.P.M.). |
|
Compliance |
Fully compliant with NFPA 70 & NFPA 79 electrical standards |
|
Footprint (in.) |
37 W x 40.5 D x 42.5 H |
|
Total Volume Capacity (cu. ft.) |
1 |
|

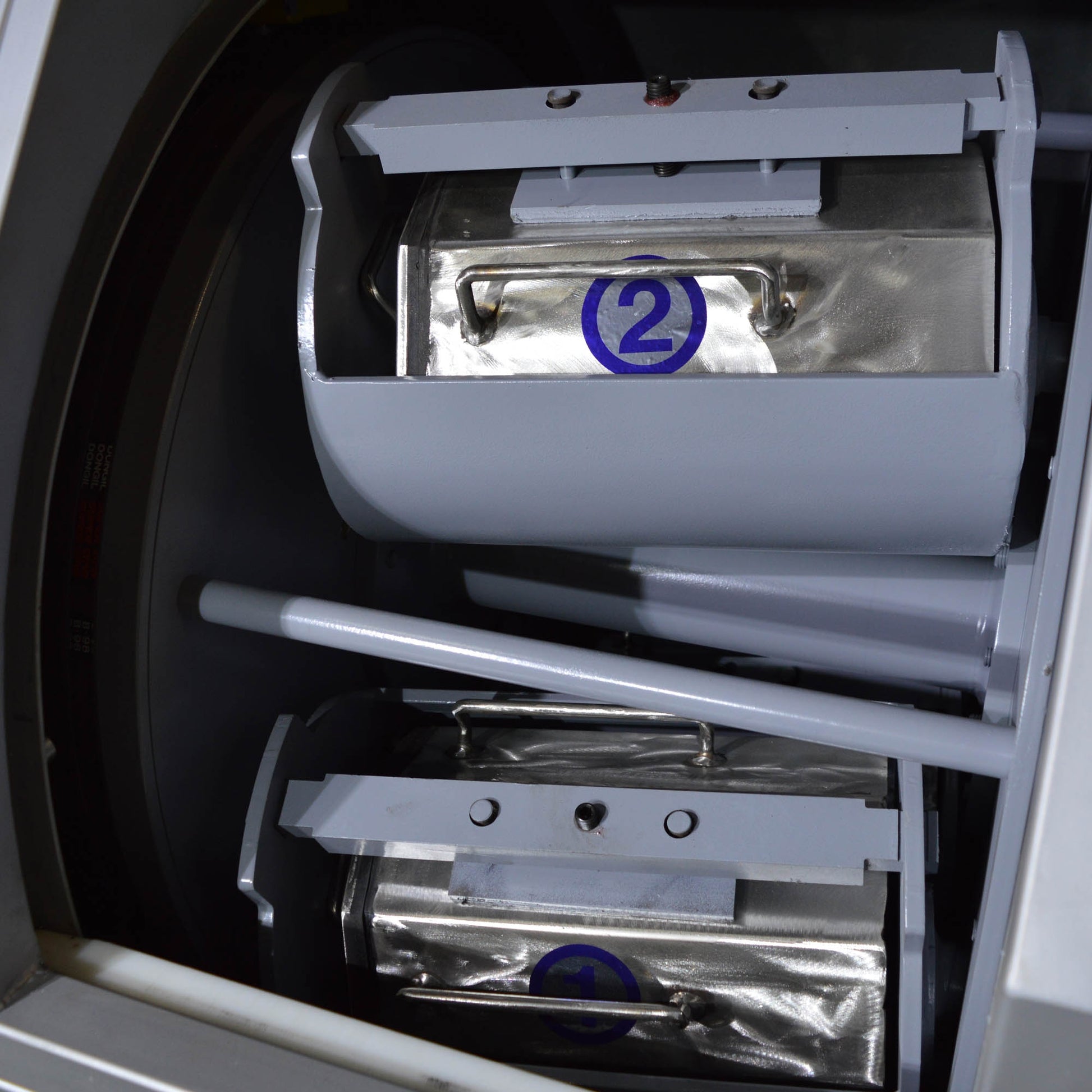

Barrel Configuration |
4 Removable/Interchangeable Barrels |
|
Barrel Dimensions (in.) |
7.25 Diameter x 10.5 Length |
|
Automation |
Integrated Process Timer & Reverse Turret Drive |
| Sales Sheet | Click Here |
Contact us for full quote and lead time
