Mr. Deburr QDB3 (Portable, Quiet 3 Cubic Foot)
Mr. Deburr QDB3 (Portable, Quiet 3 Cubic Foot)
QDB3D000
Regular price
$5,328.00 USD
Regular price
Sale price
$5,328.00 USD
Unit price
per
Shipping calculated at checkout.
Add Ons:
Tank Divider for Mr. Deburr DB300/QDB3 (3 Cubic Foot) Machines
$82.00
V-104 Timer (110V Machines Only)
$197.00
Plastic Media Kit for Mr. Deburr 300DB (only avail. with machine purchase)
$414.00
Ceramic Media Kit for Mr. Deburr 300DB (only avail. with machine purchase)
$352.00
Couldn't load pickup availability

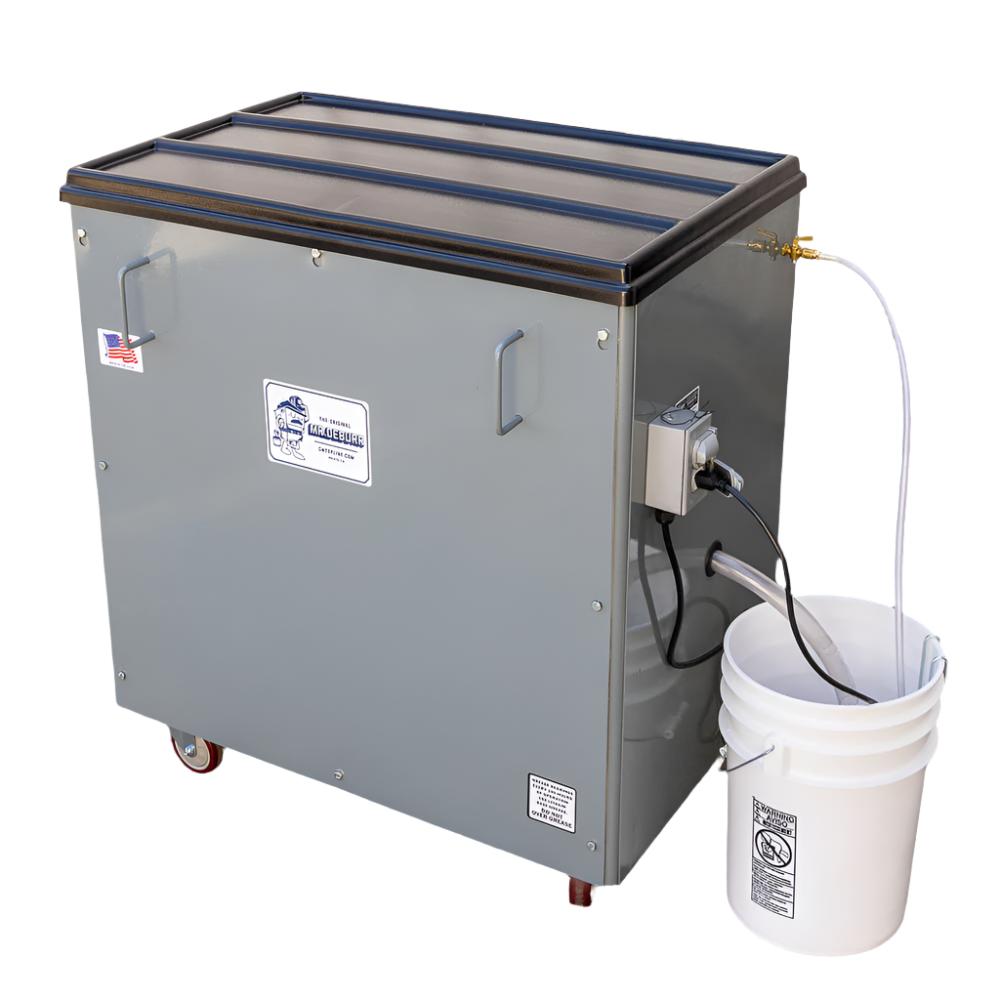

The Mr. Deburr QDB3 is a portable, quiet 3 cubic foot vibratory finishing machine for deburring, finishing, and cleaning parts. Industrial-grade locking urethane casters let you move it within your shop, while a fully enclosed tumbling tank and hard molded plastic lid lined with acoustic dampening material help reduce operating noise.
In stock Today Lead time depends on demand and may change during an unforeseen order surge.
Portable finishing with noise reduction built in
- Locking polyurethane caster wheels are included for easy movement and shop reconfiguration. Floor anchors are not required.
- The enclosed frame and included acoustic-lined sound lid provide quiet operation. The listed approximate noise level is less than 70 dB at 5 feet from the machine.
- A complete V102 fluid system with a 6-gallon pail is included.

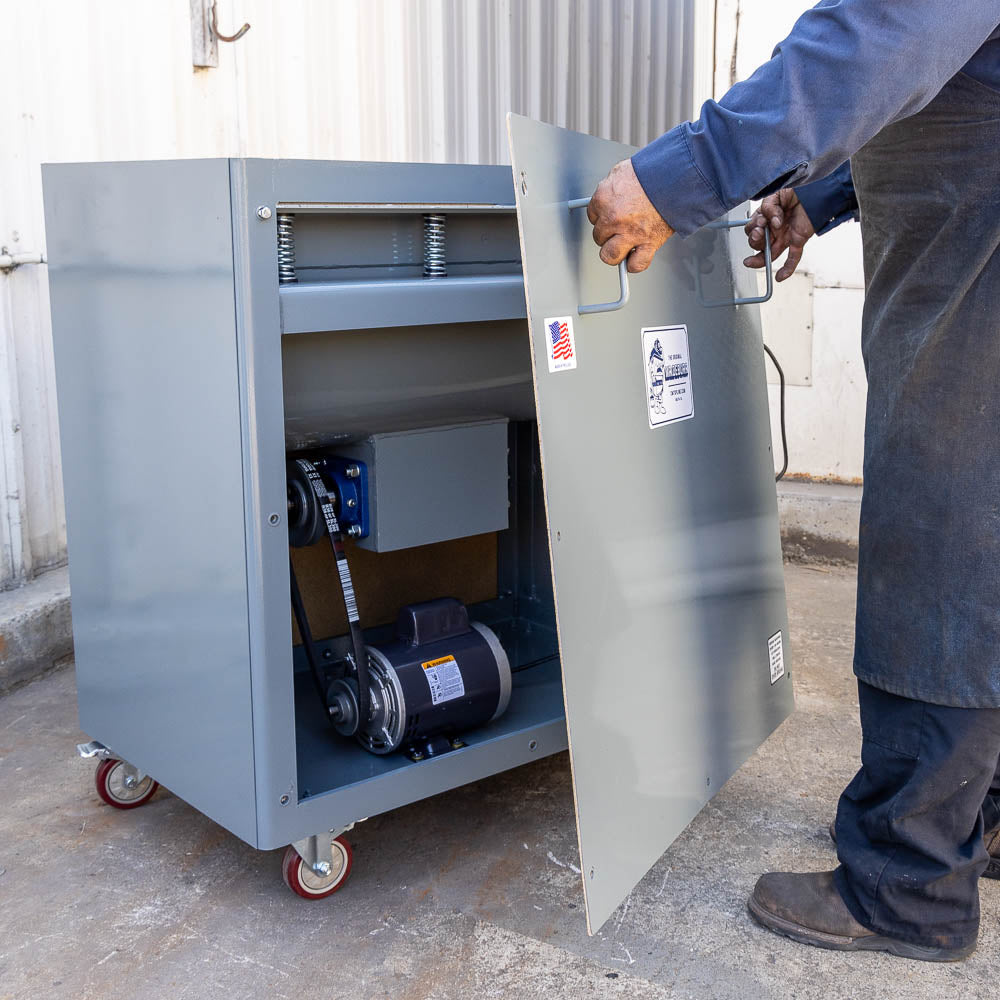

- SKF flange bearings provide high load capability, and the removable front panel provides access.
QDB3 and DB300: what stays familiar
The QDB3 builds on the DB300 design principles and retains the same 3 cubic foot tank capacity. The QDB3 adds shop mobility with locking casters and noise reduction through its enclosed tank and acoustic-lined lid.
Built for ongoing shop use
- Heavy-gauge steel construction.
- Oven-cured Uniroyal polyurethane tank lining.
- Line-replaceable parts available from C&M Topline.
- Made in the USA.
- International voltage and frequency configurations are available with motors designed for the specified supply, without converters.
QDB3 specifications
| Total tank volume | 3 cubic feet |
|---|---|
| Overall dimensions | 37 inches long × 23 inches wide × 38 inches high |
| Footprint | 33 × 15 inches |
| Inside tank dimensions | 31 inches long × 13.5 inches wide × 13 inches deep |
| Maximum part length | 30 inches |
| Media load | 100 lb plastic / 150 lb ceramic |
| Approximate part load | 100 lb |
| Tank liner | 1/2 to 5/8 inch, 80 durometer Uniroyal polyurethane |
| Minimum media size | 5 mm. Media smaller than 5 mm porcelain spheres will fall through the drain holes. Contact us before running smaller media. |
| Fluid system | V102 included, with 6-gallon pail |

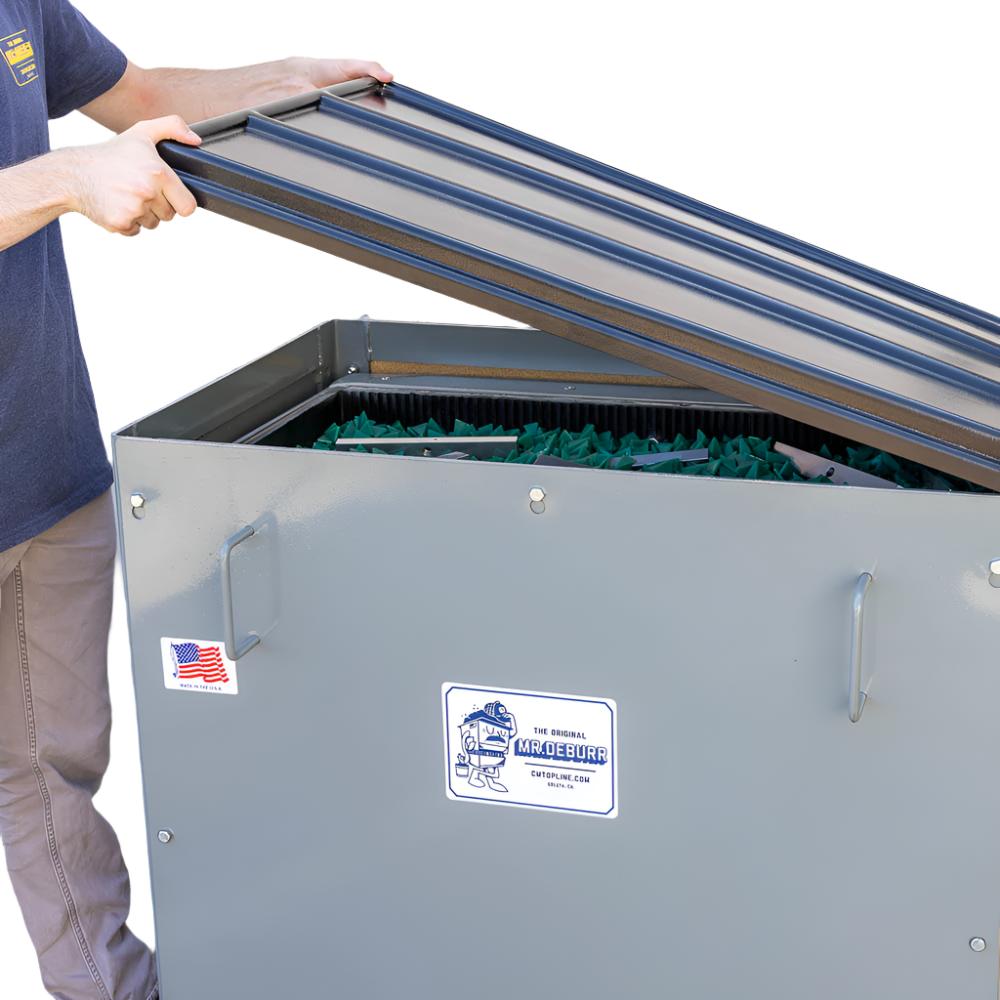

| Sound reduction | Included hard molded plastic lid lined with acoustic blocking material |
| Approximate noise level | Less than 70 dB at 5 feet from the machine |
| Standard motor | 0.75 HP, single phase |
| Voltage (US / international) | 110V, 60Hz / 220V, 50Hz; F.L.A. 14.6/7.9 |
| Anchoring | Not required; locking polyurethane casters included |
| Operating manual | Read the QDB3 operating manual |
| Engineering schematic | Coming soon |
Optional media and compound starter kits
Starter kits are available with machine purchase only. Media may be substituted with a similar equivalent depending on stock availability.
- For aluminum and other softer metals: 100 lb of Wedge 1 × 3/4 plastic media, or a similar equivalent, and 5 gallons of VF77T compound.
- For steel and other hard metals: 150 lb of Angle Cut Tristar 7/8 × 3/8 SF ceramic media, or a similar equivalent, and 5 gallons of VF100 compound.
Important freight and pickup information
- Ships on a pallet via LTL (Less than Truck Load) truck freight.
- A commercial delivery address with forklift or loading dock access is preferred.
- We reserve the right to adjust your shipping charge based on the delivery address and availability of a forklift or loading dock. Additional charges may apply.
- If shipping collect on your account, rates depend on the carrier and your negotiated rate schedule. Small-package UPS and FedEx accounts are not usually LTL freight accounts.
- To arrange pickup at our Goleta, California location, email info@cmtopline.com to process your order.
- Always wear personal protective equipment when operating any industrial machinery.
- Actual product may differ slightly from photos.
