3 Bar, 2 Speed (Hi/Lo) Rotary Tumbler

3 Bar, 2 Speed (Hi/Lo) Rotary Tumbler

Regular price $1,465.00 USD
Regular price Sale price $1,465.00 USD
Sale Sold out
Shipping calculated at checkout.

Add Ons:

TL-1 IOL/MDT Style
TL-1 IOL/MDT Style

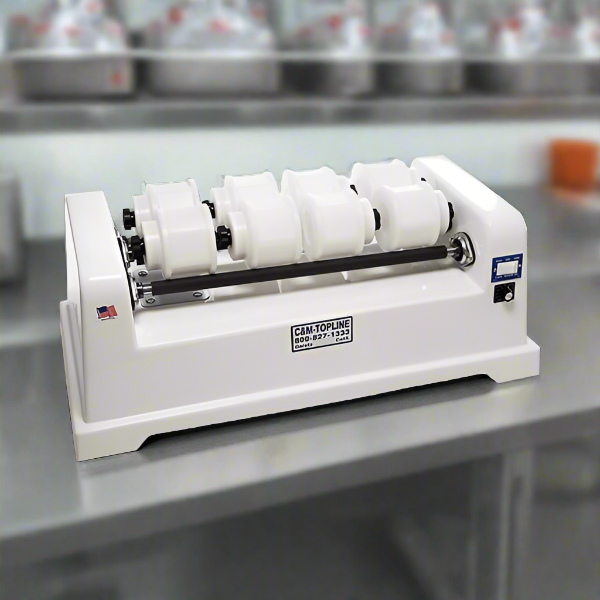

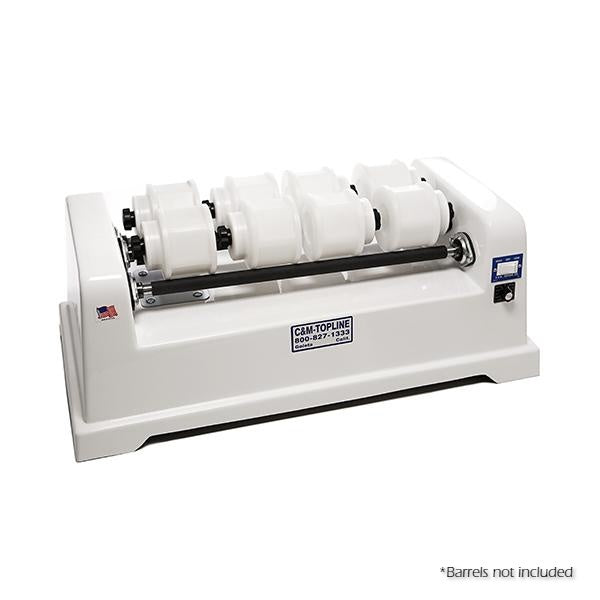

Automate and control your sensitive and labor intensive part finishing, and polishing with the 3 bar, 2 Speed Rotary finishing machine by C&M Topline. Get more done in less time.

  • Dimensions:  Length 36″ x Width 19" x Height 13-1/2″
  • Bar Length:  24
  • Bar Diameter: 1"
  • Approx. Bar RPM: 467 Low, 707 High
  • Inside Bar Spacing:  3-1/2″
  • Motor:  1/3 HP – RPM: 1725/1140
  • Voltages Available: 110v, 60Hz or 220v, 50Hz

See barrel chart below for the approximate RPM each barrel would rotate on HI or LOW speed.

  • Highly polished white fiberglass base designed for easy clean up*
  • Made for industrial and laboratory applications
  • Solid steel bars cast in high quality urethane
  • All three bars are belt driven and fitted with ball bearings
  • Available in 120 volts 60 hertz or 220 volts 50 hertz for export
  • Ideally suited for any precision tumbling activity
  • Note: Barrels pictured above not included with machine purchase
  • Made in the USA
  • Note: Barrels pictured above not included with machine purchase

Tumbling Barrel Spec Chart

*Barrel RPM is approximate and can vary
*Small cosmetic imperfections in the topcoat paint such as hairline cracks and corner chips occasionally occur during normal ground shipment handling. Cosmetic imperfection do not affect operation. Please contact us if you have questions or concerns.
