Automate and control your sensitive and labor intensive part finishing, and polishing with the 2 bar, Variable Speed Rotary finishing machine by C&M Topline. Get more done in less time.
Dimensions: Length 36″ x Width 19" x Height 13-1/2″
Bar Length: 24″
Bar Diameter:1"
Approx. Bar RPM: 0 to 918
Inside Bar Spacing: 7-1/2″
Motor: 1/4 HP – RPM:1750
Voltages Available: 110v, 60Hz or 220v, 50Hz
Highly polished white fiberglass base designed for easy clean up
Made for industrial and laboratory applications
Solid steel bars cast in high quality urethane
All three bars are belt driven and fitted with ball bearings
Available in 120 volts 60 hertz or 220 volts 50 hertz for export
Rheostat speed control, select any bar RPM between 0 and 918
Ideally suited for any precision tumbling activity

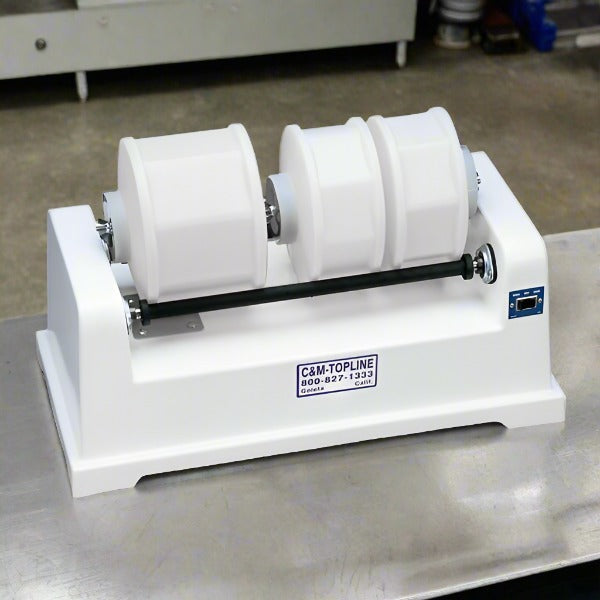

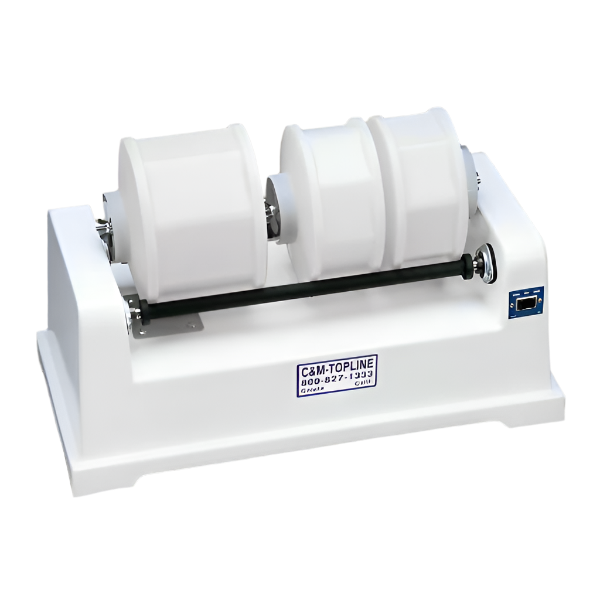

Note: Barrels pictured above not included with machine purchase
Made in the USA
Our variable speed machines are infinitely adjustable between 1 bar RPMs and 918 bar RPMs. See the included instructions for the AC-DC variable speed controller for help with selecting your min and max points.
Approximate Barrel RPM Range:
MDT/IOL = 1-120 RPMs
TL-1 = 1-120 RPMs
TL-2 = 1-80 RPMs
TL-3 = 1-56 RPMs
TL-4 = 1-50 RPMs
TL-6 = 1-40 RPMs
Variable Speed Motor Controller Manual: Download Here
*Small cosmetic imperfections in the topcoat paint such as hairline cracks and corner chips occasionally occur during normal ground shipment handling. Cosmetic imperfection do not affect operation. Please contact us if you have questions or concerns.
