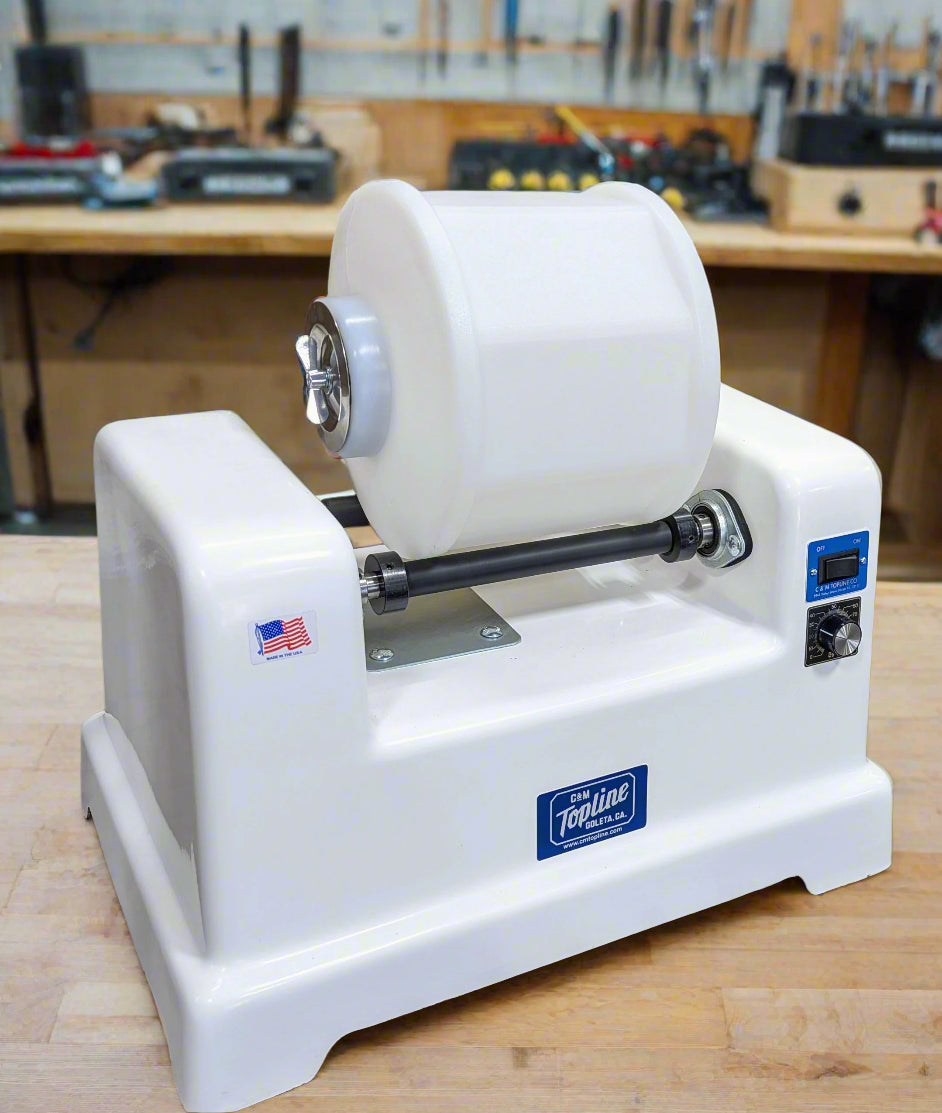

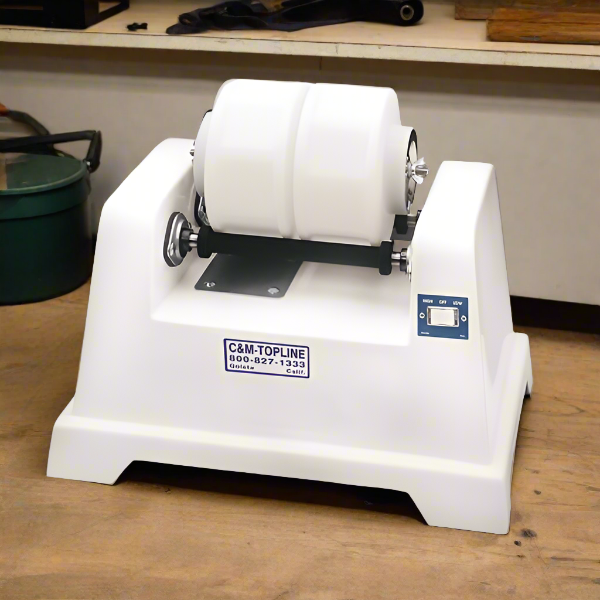

MiniMax 2 Bar, Variable Speed Rotary Tumbler

MiniMax 2 Bar, Variable Speed Rotary Tumbler

MMVSD000
Regular price $1,263.00 USD
Regular price Sale price $1,263.00 USD
Sale Sold out
Shipping calculated at checkout.

Add Ons:

TL-1 IOL/MDT Style
TL-1 IOL/MDT Style
$174.00
TL-1
TL-1
$75.00
TL-2
TL-2
$125.00
TL-3
TL-3
$162.00
TL-4
TL-4
$212.00

Automate your costly and labor intensive part deburring, finishing, and cleaning with the MiniMax Rotary finishing machine by C&M Topline. Get more done in less time.

  • Dimensions:  Length 23″ x Width 16″ x Height 13″
  • Bar Length:  9.25″
  • Bar Diameter: 1"
  • Approx. Bar RPM: 0 to 918
  • Inside Bar Spacing:  4.5″
  • Motor:  1/4 HP – RPM: 1725/1140
  • Voltages Available: 110v, 60Hz or 220v, 50Hz

  • Highly polished white fiberglass base designed for easy clean up*
  • Made for industrial and laboratory applications
  • Solid steel bars cast in high quality urethane
  • All three bars are belt driven and fitted with ball bearings
  • Available in 120 volts 60 hertz or 220 volts 50 hertz for export
  • Rheostat speed control, select any bar RPM between 0 and 918
  • Ideally suited for any precision tumbling activity
  • Note: Barrels pictured above not included with machine purchase
  • Made in the USA

Our variable speed machines are infinitely adjustable between 0 bar RPMs and 918 bar RPMs. See the included instructions for the AC-DC variable speed controller for help with selecting your min and max points.

Variable Speed Motor Controller Manual: Download Here

*Note: Variable speed controls not pictured

*Small cosmetic imperfections in the topcoat paint such as hairline cracks and corner chips occasionally occur during normal ground shipment handling. Cosmetic imperfection do not affect operation. Please contact us if you have questions or concerns.
