Process Developed:
Machine: Mr Deburr DB300
- Two Hours with Tetrahedron 3/4 X 3/4 X 3/4 X Green Plastic
- Compound: VF77
Results:

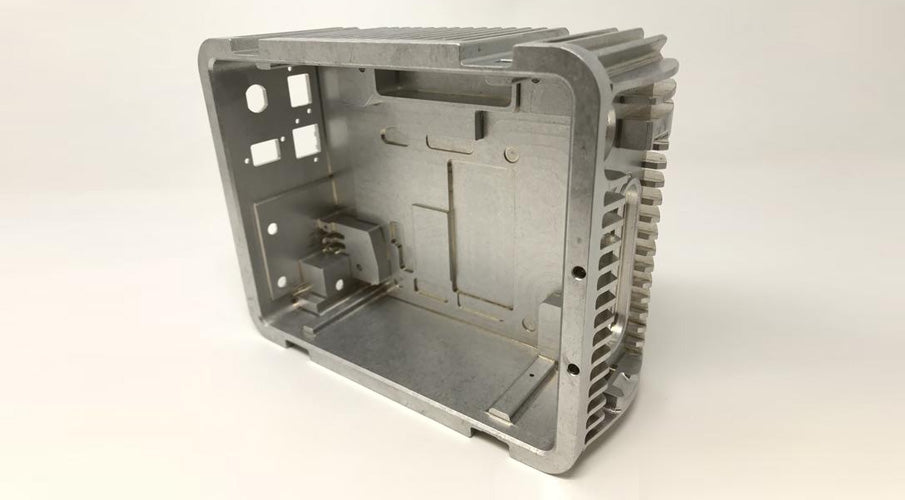

This is a very common application and common material for tumbling. AL 6061 is deburred and finished nicely using the general purpose green plastic media. We selected a tetrahedron to try and access the pockets and fins. Sizing a media to enter every individual feature on the part is sometimes difficult but the points on a tetrahedron access inside edges of pockets nicely. The finished part is ready for anodize in a fraction of the time as compared to hand processing
This is a very common application and common material for tumbling. AL 6061 is deburred and finished nicely using the general purpose green plastic media. We selected a tetrahedron to try and access the pockets and fins. Sizing a media to enter every individual feature on the part is sometimes difficult but the points on a tetrahedron access inside edges of pockets nicely. The finished part is ready for anodize in a fraction of the time as compared to hand processing
Before
After
